Beamball Sample

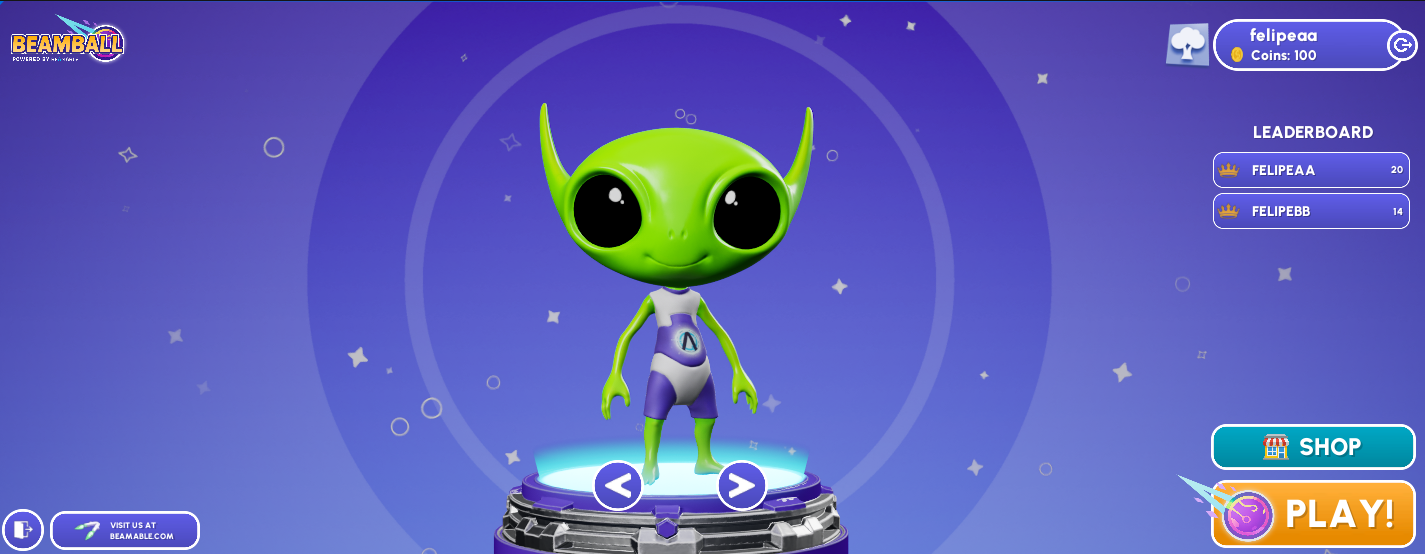

This demo showcases how you can use the Beamable Unreal SDK's in full game project. Particularly it focus on the Store, Leaderboard, Stats and Matchmaking.


Introduction

Aside from our BeamableCore Plugin, here's what the sample contains:

  • BEAMPROJ_Beamball Unreal Plugin.: Contains the UE implementation for the sample's client. The core code is inside LiveOpsDemoMainMenu.h and part of the implementation is done through BPs inside the folder UI_BPs folder of the BEAMPROJ_Beamball project.
  • Microservice/BeamballMs Microservice: Microservice containing code that's used by the sample for various matchmaking and stats stuff.

To set up this sample you'll need a a Beamable Account and a Realm. To configure the repo for the sample run dotnet beam unreal select-sample BEAMPROJ_Beamball.

Setting up the Project

To set up an organization and realm to run this sample, follow the steps below.

  1. Go to the Beamable Portal and create a new Beamable realm called Beamball
  2. Compile and open the BeamableUnreal editor project.
  3. Sign into your Beamable account and go to the Beamball realm.
    1. Optionally you can hit Apply to Build after the realm change is done.
  4. Let's Setup the Content
    1. First you will need to run the command dotnet beam content replace-local --from DE_1885450253346843 --to YOUR_REALM_ID to bring all the content from the sample to your current realm.
    2. Open the Content window.
    3. Ensure there's an game_types content with the name default
    4. Ensure there's an currency content with the name coins
    5. Ensure there are 4 itemskin content with the names skin1, skin2, skin3, skin4
    6. Ensure there's an leaderboard content with the name global
    7. Ensure there are 3 listings content with the names skin1, skin2, skin3
    8. Click Publish to publish those new contents to the realm.
    9. You can read more about the content system Here

Running the Sample in Editor

Now you're set up to run the sample.

  1. Open the Unreal editor.
  2. Go to the Beamable -> Microservice window.
    1. You should see the BeamballMS service there. Select it.
    2. Click Run and wait until you see the Service ready for traffic log line (and the running icon in the Microservice's card to change).
    3. After you're done with the sample, don't forget to come here and stop the service.
  3. Open the Beamball_MainScreen Level if it's not opened yet.
    1. You can find it inside the BEAMPROJ_Beamball Content folder.
    2. If you can't see plugin content in your content browser, you can change the settings of the UE Content Browser to display it.
  4. Play the Beamball_MainScreen in the Editor.

Important Blueprints

The WBP_MainMenu is one of the most important blueprint in the main screen, it contains almost all flows to make the sample work.

Some example of the blueprint:

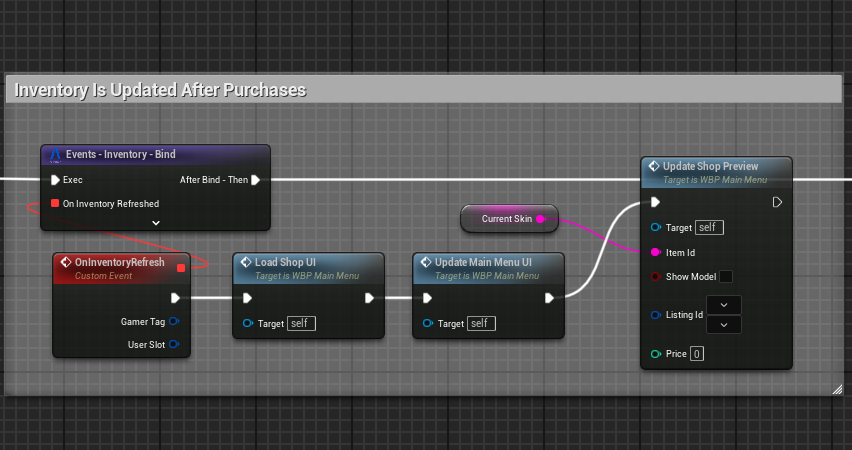

bind-event.png Binding to the inventory subystem to update the UI when it receive a event call.

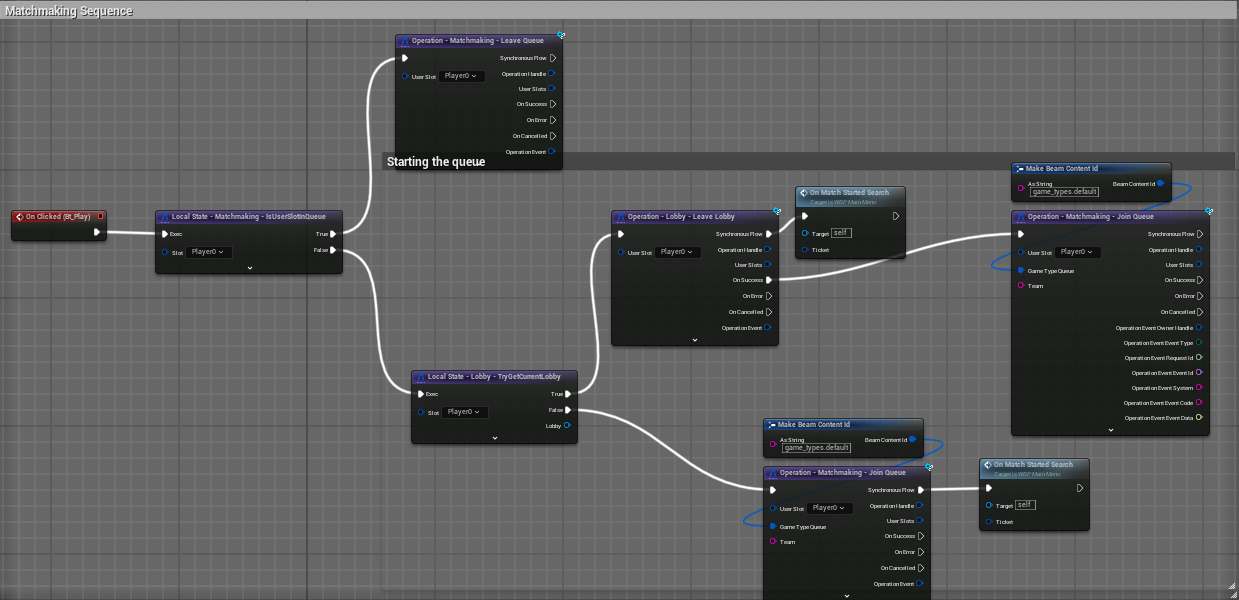

matchmaking-flow.png Showing how to handle matchmaking flow

Can I use it as a Template?

This sample is not meant to be used as a template directly, however, its components are free for you to copy and use in your own project. Here's what these are:

  • The BeamballMS Microservice : located inside Microservice/BeamballMS
  • Beamable code and blueprints inside BEAMPROJ_Beamball plugin
