Beamball – Matchmaking and Lobby System

In the Beamball sample we demonstrate a basic implementation of the Beamable's Matchmaking and Lobby services and Hathora Orquestrators.

Starting a Matchmaking Queue

The Player clicks Play in the main menu then The Refresh Hatchora Ping Stat Operation updates ping in the player's stats allowing the server to choose the best lobby to this player. TheLocal state is checked with Local State - Matchmaking - IsUserInQueue, leaving the queue if already in. The Local State - Lobby - TryGetCurrentLobby checks if the player is in a lobby, leaving if so. Finally, if there's impediment the player joins the matchmaking queue with Operation - Matchmaking - Join Queue. Beamable services handle the rest of the matchmaking process, forming balanced lobbies and starting the match.

Main SDK Functions to be aware of:

• Operation - Matchmaking - Leave Queue: Removes the player from the current matchmaking queue.
• Operation - Lobby - Leave Lobby: Exits the current lobby if one exists.
• Operation - Matchmaking - Join Queue: Places the player into the matchmaking queue for the specified game type.
• Local State - Matchmaking - IsUserInQueue: Checks if the player is currently in a matchmaking queue.
• Local State - Lobby - TryGetCurrentLobby: Retrieves the current lobby if the player is in one.

Matchmaking Events

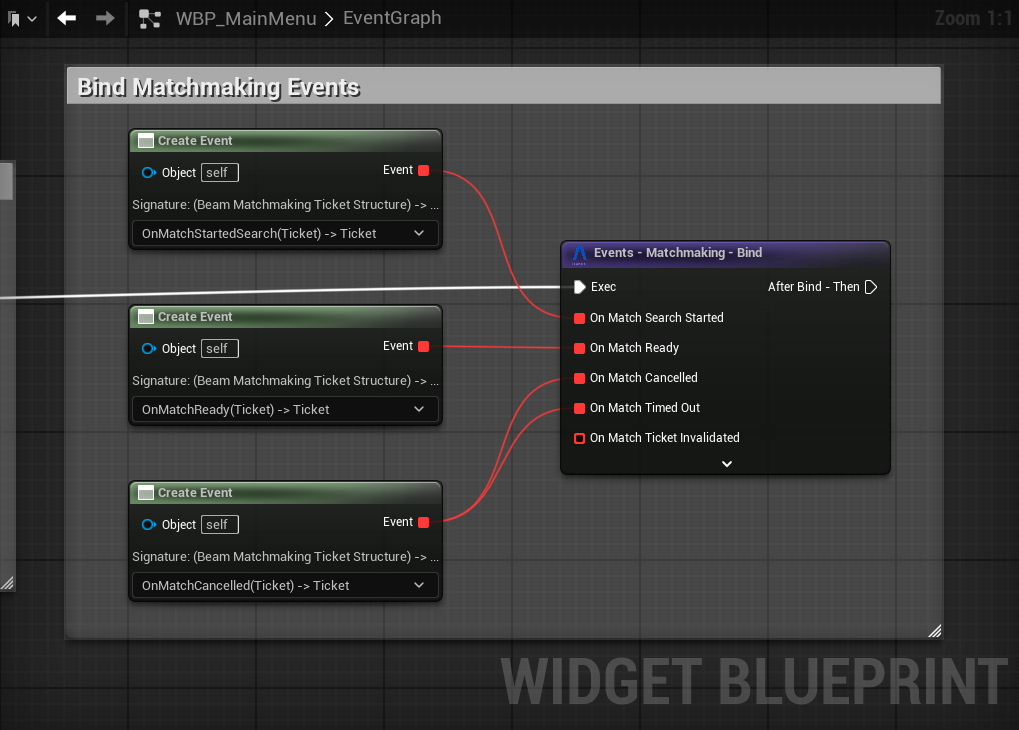

The matchmaking process is asynchronous, and the player is kept informed through event bindings on the Events - Matchmaking - Bind. The player is notified when they successfully started search for a match, when the Match is ready, canceled or timed out.

Starting a Match

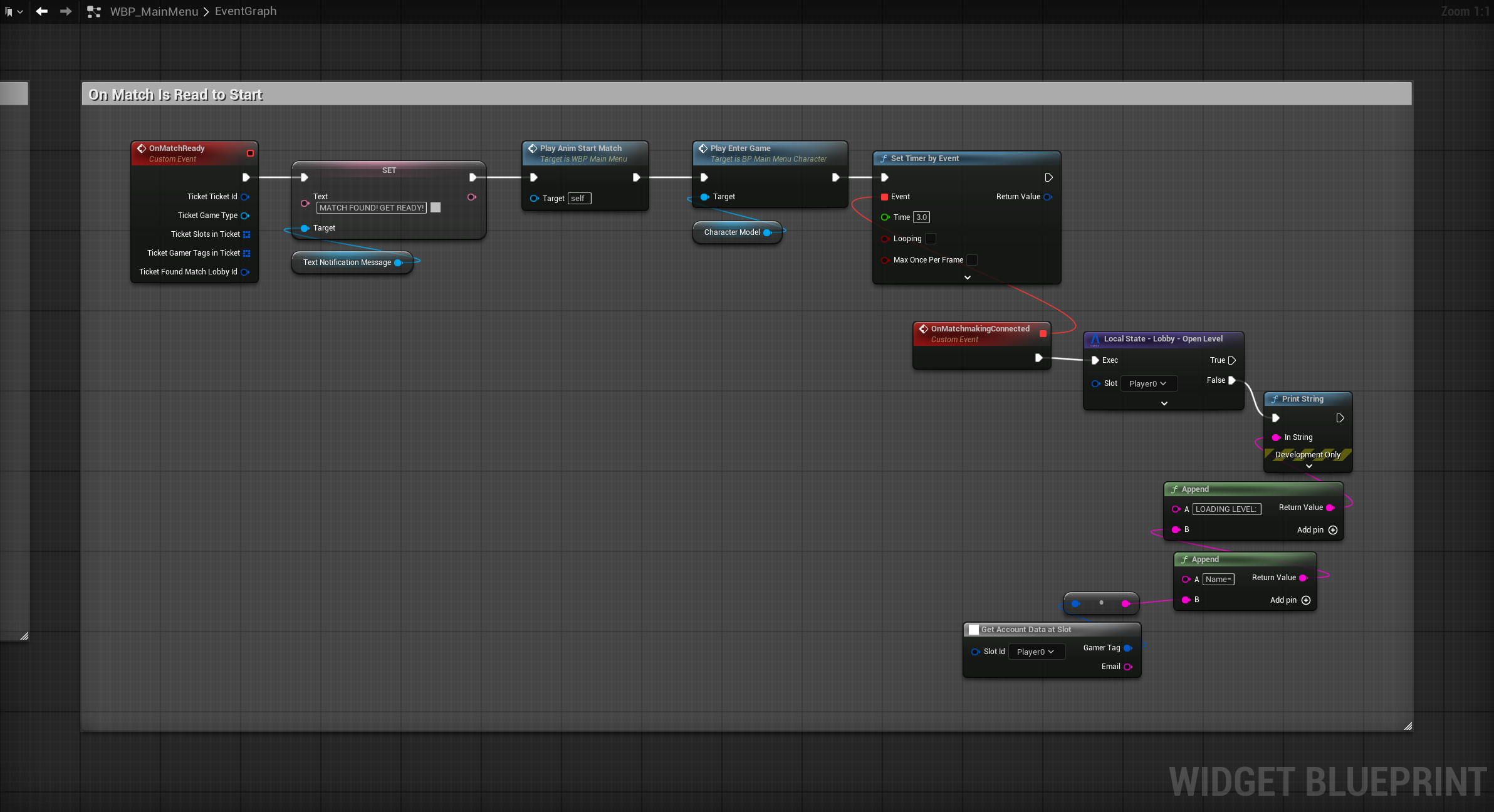

Once the matchmaking system has formed a lobby, the player is notified and can start. The Operation - Lobby - Load Level operator is called, which signals Beamable's backend to initiate the match using the configured Lobby Data. In this sample the Hathora Orquestrator handles the server alocation and return a call to Beamable to start the match, allowing players to seamlessly transition into the game.

Summary

The matchmaking system in Beamball demonstrates how to integrate Beamable’s Matchmaking and Lobby operators in a clean sequence:

• Ensure the player leaves any existing queues or lobbies,
• Place the player into the appropriate matchmaking queue.
• Handle asynchronous events to keep the player informed of their matchmaking status.
• Start the match once the lobby is ready.

This guarantees a seamless matchmaking experience while letting Beamable’s backend dynamically manage match creation and team balance.
