Inventory

The Beamable Inventory system is designed to manage player inventories in a game, allowing for the addition and removal of items and currencies. It supports both Fungible and Non-Fungible content types:

  • Fungible means that each instance of that content is not unique. The simplest example is a Soft/Hard Currency in a live-services game. Each coin you grant the player is not unique. In Beamable, this type of content is represented as a UBeamCurrencyContent.
  • Non-Fungible means that each instance of that content is unique. The simplest example is an item in an MMORPG. Each instance of that item is unique and can have its own properties. In Beamable, this type of content is represented as a UBeamItemContent.

Beamable's Inventory system is built on top of Beamable's Content Feature. You create Currency and Item content via the content window. You can also inherit from their base types to define additional read-only properties for custom item/currencies in your game.

Each player's inventory state can be thought of as:

  • A mapping of how much of each defined Currency the player currently has.
  • A list of instances of Items the player owns, each with their own unique InstanceId and Key-Value pair of instance properties.

In short, Inventory manages two types of data: items and virtual currencies.

Getting Started

To use the inventory system, you will need to first:

  1. Go to the Content Window.
  2. Select item as a type.
  3. Create an item content definition.
  4. Select currency as a type.
  5. Create an currency content definition.
  6. For this guide, make sure their Client Permission property is set to true.
  7. Publish this content to the realm.

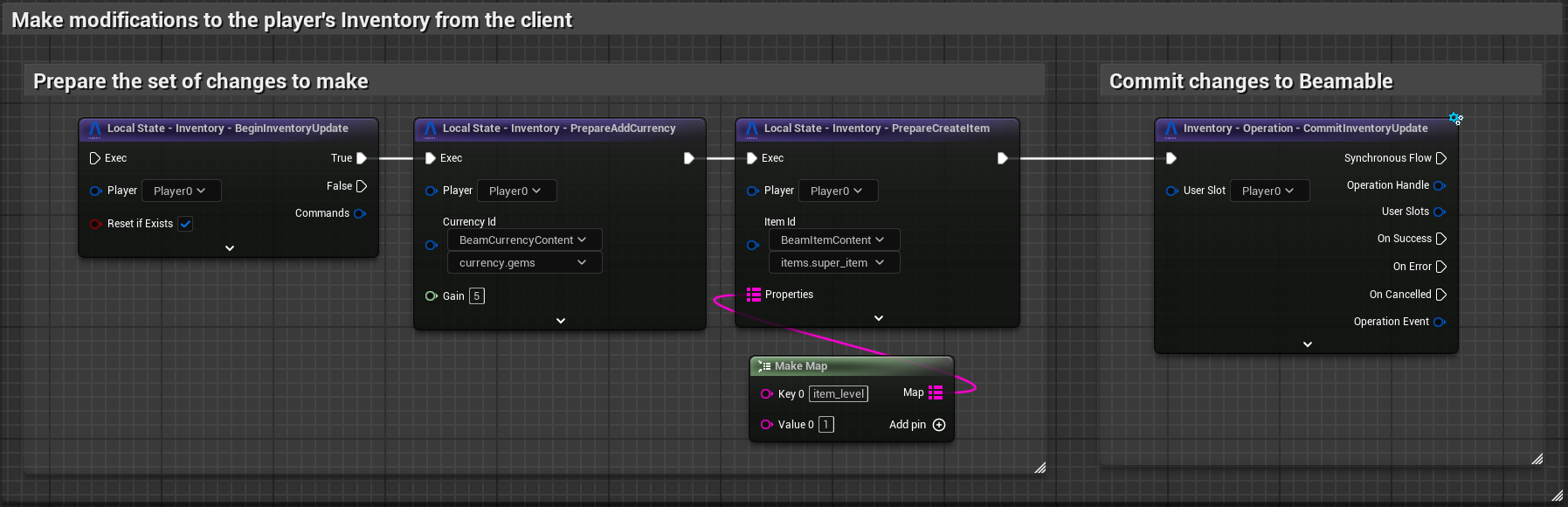

Now that you have items and currencies published, follow the steps below to create a BP function that adds some currencies and grants an item to the player:

  1. Open your Level Blueprint (or some other BP).
  2. Get the BeamInventorySubsystem
  3. Call BeginInventoryUpdate. This begins building a set of changes we will submit to the Beamable backend later.
  4. Call PrepareAddCurrency and PrepareAddItem selecting the currency and item types you created.
  5. Call the Commit Inventory Update operation.

Now, call this function while a user is signed in to grant the currency/item to the player.

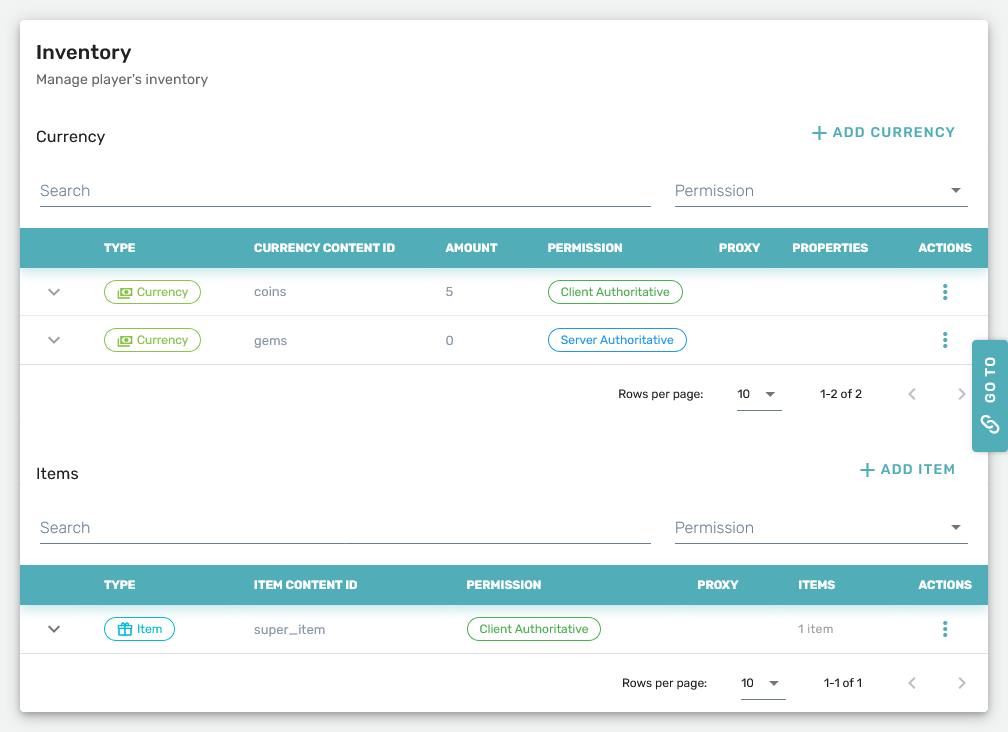

After running the above function at least once, you should be able to see the results of these calls in the Beamable portal. To do so:

  • Set aside the Gamertag/UserId from the Unreal Engine logs.
  • Click Open Portal in Beamable window.
  • Go to Engage->Players and search for the player via Gamertag/UserId.
  • Go to Inventory and see that the appropriate currency and items are inside the user's inventory.


Batching updates

In the getting started example, we make a new FBeamInventoryUpdateCommand and commit it right away.

It is desirable, for both performance and latency reasons, to batch as many inventory changes as possible as long as it makes sense for your game's design. So, if you're game's feature allows for a "edit multiple, commit later" pattern of UX, leveraging this API is the most efficient way to go about it.

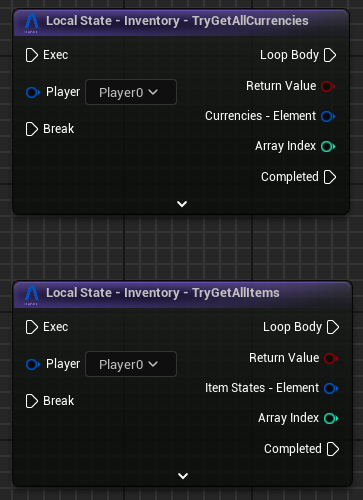

Reading Local State

In order to read the local state of the player's inventory, you can use the following operations:


Currencies

Currencies are used to buy items with our Store system (e.g., Gold). It can also be used to symbolize the player's progress through the game, such as experience points (XP) depending on the specifics of your game system.

In the Unreal SDK, currencies are represented by the UBeamCurrencyContent. Each currency can specify a startingAmount that is used to pre-seed player accounts with that amount of currency for very simple cases. For more control over each player's starting state we recommend using our Federated Player Init.

You can subclass this content type if you want to add more information to currency that is specific to your like, such as UI related ObjectPaths and other references to assets that might be relevant to your game.

Items

The Items feature allows for the creation and management of various in-game objects, such as equipment, consumables, and resources. In the Unreal SDK, items are represented by the UBeamItemContent type. You can subclass this content type to add game-specific information to item content which is then accessible via the UBeamContentSubsystem and in Microservices.

In the UBeamInventorySubsystem, each item instance inside a player's inventory is represented by FBeamItemState. These instances have the following properties:

  • ContentId: The Id of UBeamItemContent that represents the type of this item instance.
  • Properties: A key-value store of properties of this specific item instance. You control which properties exist here.
  • InstanceId: A unique id of item instance inside this player's inventory.
  • CreatedAt: when item instance was created.
  • UpdatedAt: last edit date.
  • FederatedId: See Inventory Federation for more information about this field.

Client Permissions

I's up to developer to decide how the content can be added to player inventory by specifying clientPermission field:

When toggled, the content becomes Client-Authoritative: the SDK allows game-clients to add/remove that item or currency to the player inventory directly. If your game does not include networked multiplayer and can tolerate cheating, allowing the client to read and write their own currencies is the simplest option.

If not toggled, the content becomes Server-Authoritative: trying to add/remove that item or currency to the player inventory from a game-client directly results in an error. The item/currencies are still readable in the game-client. To add/remove items and currencies that are Server-Authoritative, do so via a Microservice and a ClientCallable.

Edit player Inventory via Portal

Regardless of the value of the clientPermission field it is possible to view and modify players inventory through the Portal. More info here.

Item Instance Properties

As with most key-value pairs for arbitrary data, try to follow the guidelines below:

  • For Keys:
    • 8-20 characters are ideal (purely for human ergonomics).
    • Keeping them under a few hundred characters is best for performance.
    • Use enforce-able and recognizable patterns for your keys.
      • Bad: ItemEnhancementName and ENH_Count
      • Good: ENHANCE_Name and ENHANCE_Count OR ItemEnhancementName and ItemEnhancementCount.
    • Keeping your project organized is key.
  • For Values:
    • Values should be no more than a few hundred characters long.

If you need larger complex data structures, we recommend you use Micro Storages instead of this key-value store. This is especially true if you do NOT need to use the data in these properties at the same time as you need the list of items; for example, a list view which then opens some sort of details view. This reduces pressure on the inventory service and can help reduce latency of inventory query requests.
