Lobbies

Beamable's Lobby system can be used primarily for 2 cases:

  • Open/Closed Custom Lobbies/Rooms: Player-created custom rooms for room-based games.
  • Resulting Matchmaking Matches: Matchmaking queues output lobbies with players in them at each matchmaking queue. See more in Matchmaking.

Lobbies are rooms containing only online players and a set of arbitrary room properties and per-player properties. There are a few rules you should be aware of:

  • Each Non-Matchmaking Lobby has a Host and other Players.
    • Matchmaking Result Lobbies have no host; instead they disband once every player in it becomes offline.
  • The Host Player...
    • ...becoming offline will disband a lobby (after a small delay).
    • ...can edit global properties and any other player's properties.
    • ...can kick other players.
  • Other Players...
    • ...can read the entire lobby data but only write to their own state.
    • ...can leave the lobby.
  • Becoming offline will remove you from the lobby (after a small delay).

Getting Started - Open/Closed Lobbies

This section describes how to set up and join manually created lobbies. Lobbies created via Matchmaking don't need this setup.

Creating Lobbies

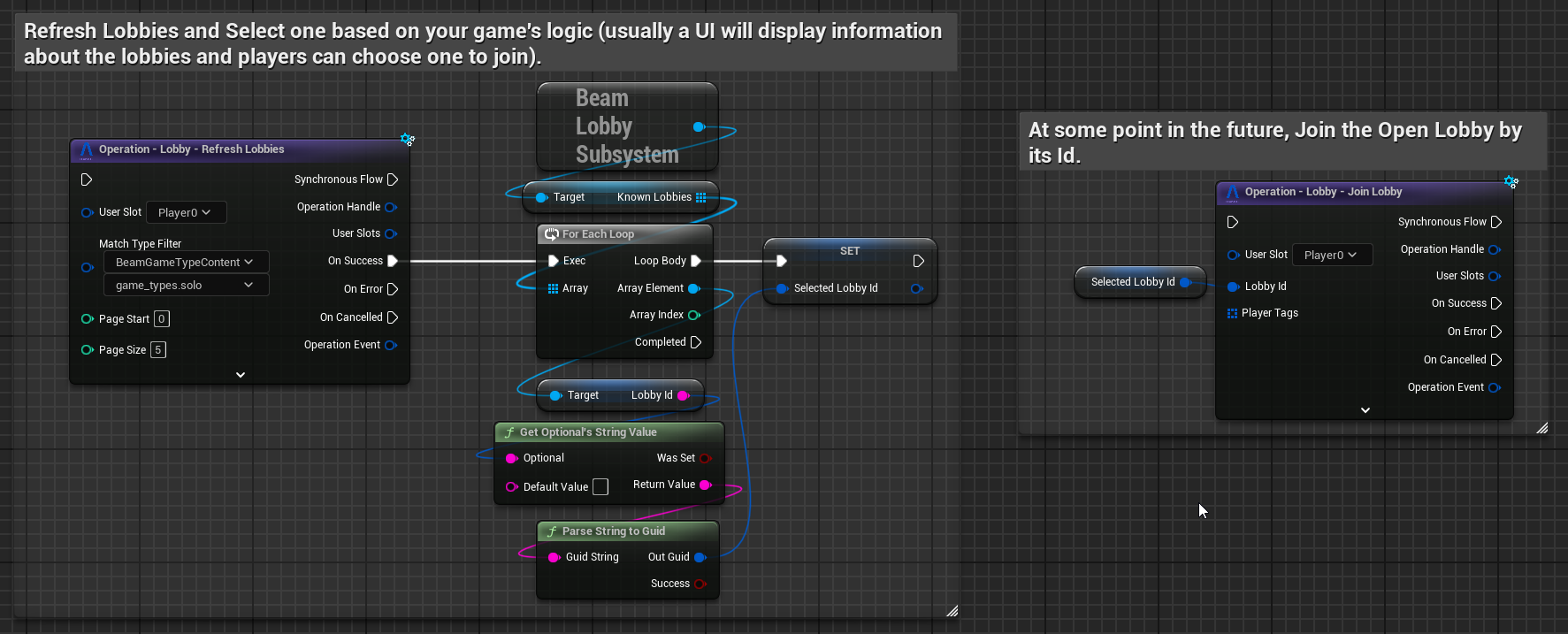

Use the Lobby - Create Open Lobby operation to create an Open Lobby. This Lobby will be visible to all players in the realm. You can use the Lobby - Refresh Lobbies operation to fetch filtered paged lists of Open lobbies in a realm.

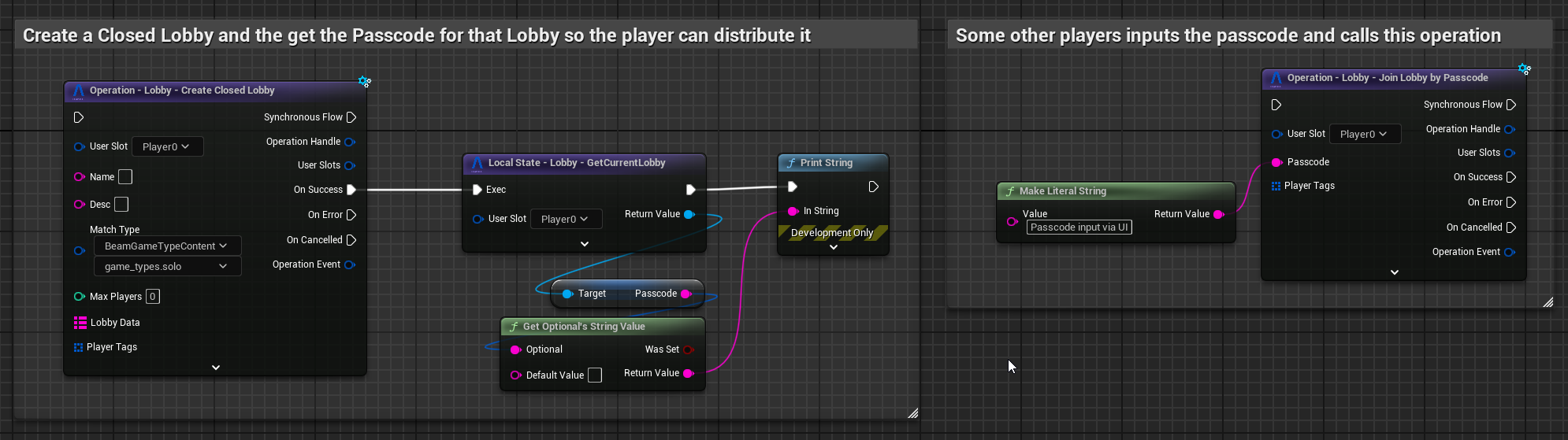

Use the Lobby - Create Closed Lobby operation to create a Closed Lobby. This Lobby is NOT visible to all players in the realm and can only be joined via its Passcode.


When in a Party, only the party leader is allowed to join a Lobby. Doing so will also bring all other party members into the Lobby with them. If the Lobby MaxPlayer count would be surpassed by the entire party joining, nobody can join.

Leaving and Kicking Users

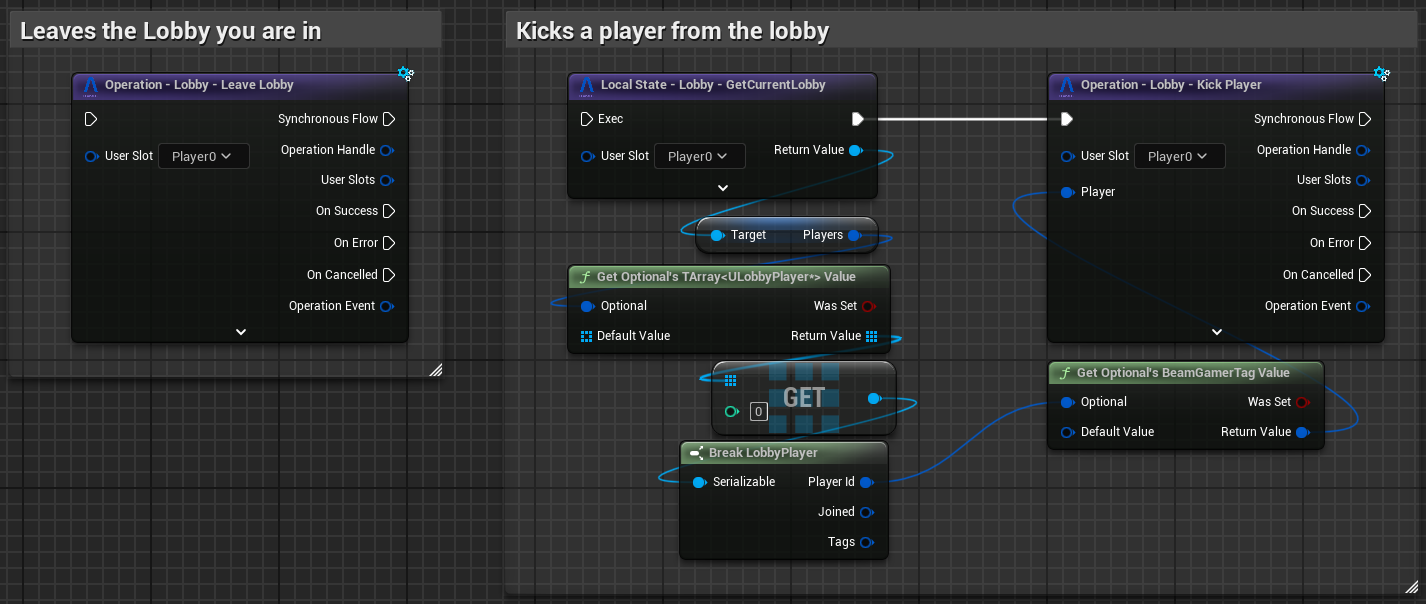

Once in a Lobby, any player can leave it by using the Lobby - Leave Lobby operation. By default, whenever a host leaves the lobby, Beamable will disband the lobby and notify all players in it. The Lobby's Host also has the ability to kick players via the Lobby - Kick Player operation.


In some games, you might want to make your host transfer ownership of the lobby before leaving. To do that, you can update the Lobby's host before leaving.


Dedicated Servers

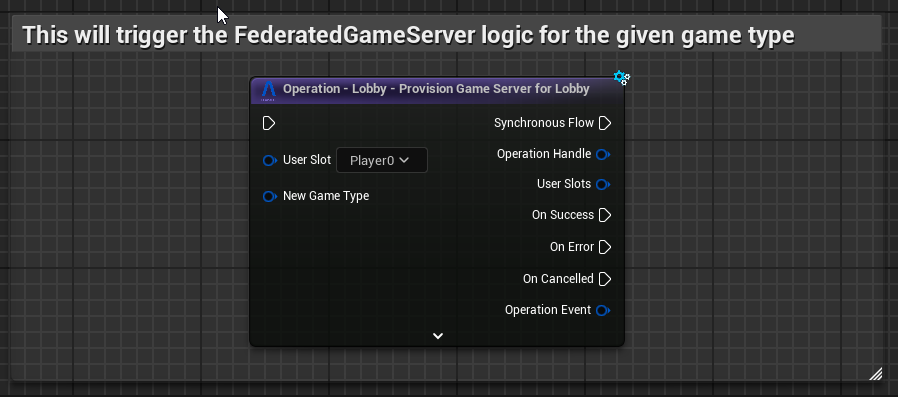

For dedicated server games, you can use the Lobby - Provision Game Server for Lobby operation to trigger a Game Server Federation to boot up a server instance for the game. If you need to differentiate between matchmaking lobbies and Open/Closed lobbies, you can verify whether or not the lobby has a host within the federation's logic to properly handle when and which game server to provision.


Reading and Writing to Lobbies

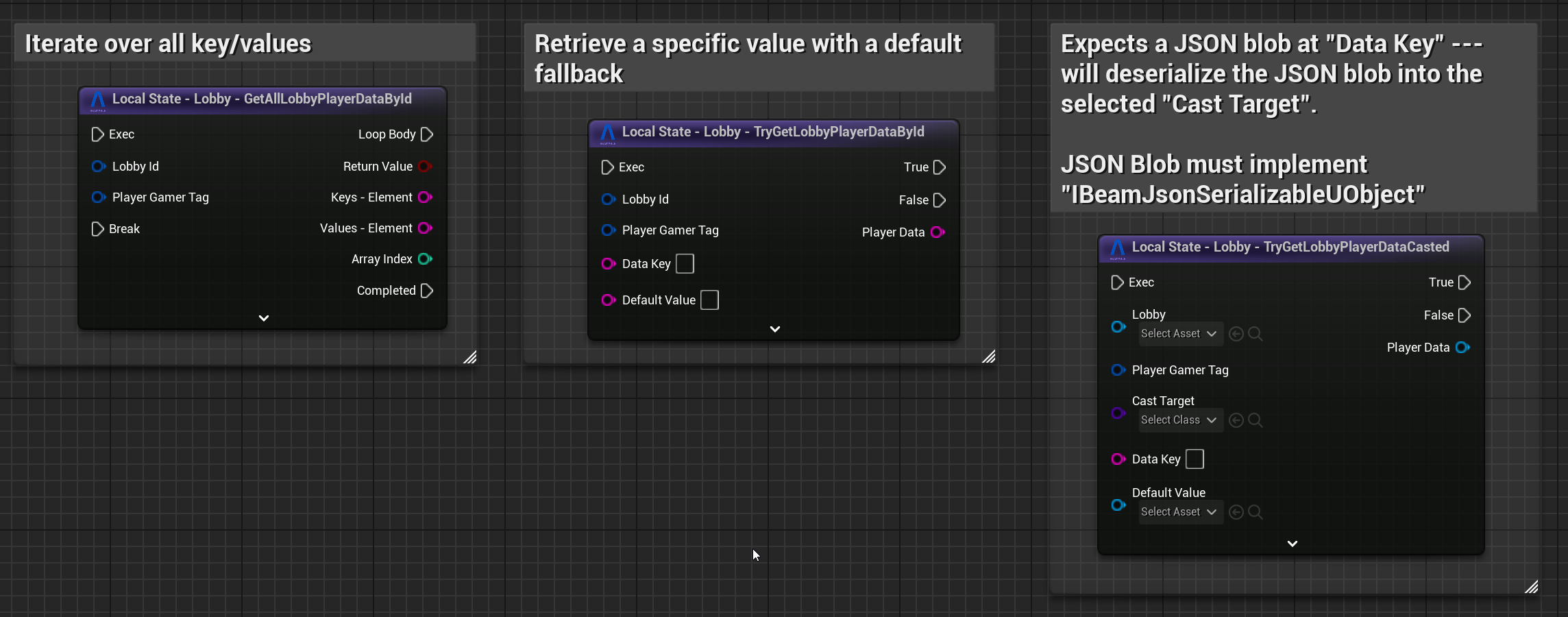

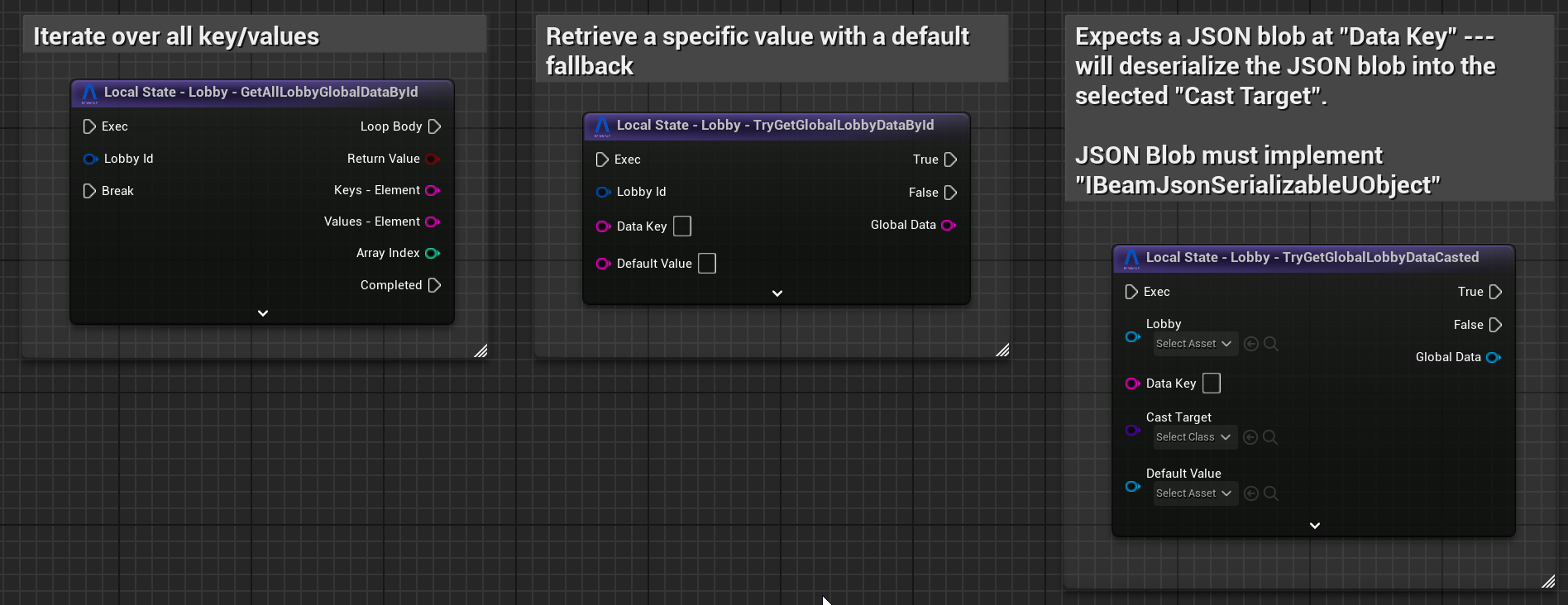

For both Matchmaking lobbies and Open/Closed lobbies, we need APIs to read/write to lobby data that is synchronized between all players in the lobby.

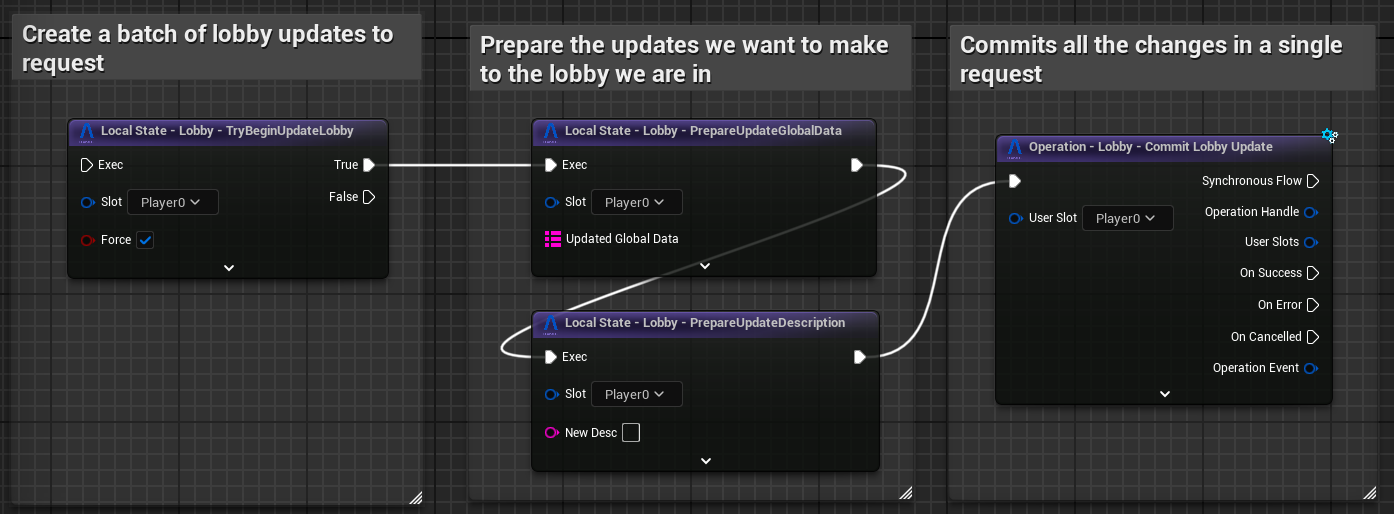

Updating the Lobby's Global Data and any of its configurations can only be done by the Lobby's host (or a server in case of Matchmaking lobbies).

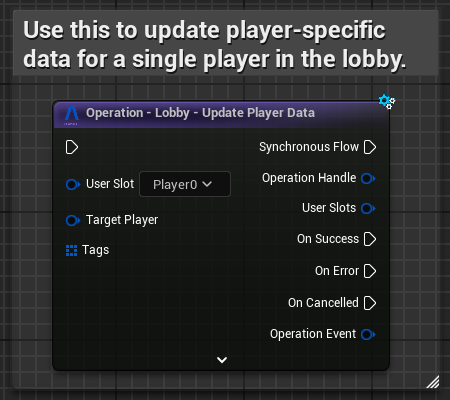

Updating individual player data in the lobby can be done by the Host (for any player). Non-Host players can only update their own properties but read ALL player's properties.


Synchronizing Across Clients

Beamable's Lobby system will automatically notify every player inside a lobby of relevant events. Once you're in a lobby, the SDK keeps track of your local state inside UBeamLobbyState (one per-UserSlot).

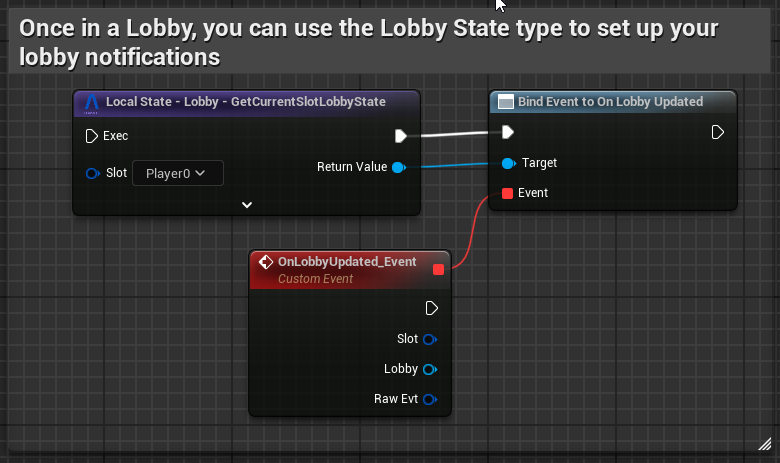

You can use GetCurrentSlotLobbyState to get the UBeamLobbyState and setup various Delegates in this object to respond the these events, normally updating your UI or custom system built on top of this subsystem.


Here's the list of events we expose:

  • OnKickedFromLobby: Received whenever a host removes a player from the lobby via KickPlayerOperation.
    • Every player in the lobby receives this notification, including the host.
  • OnLeftLobby: Received whenever a player leaves the lobby via LeaveLobbyOperation.
    • Every remaining player in the lobby receives this notification.
  • OnLobbyDisbanded: Received whenever the host player leaves.
    • Every remaining player in the lobby receives this notification. The host does not receive it.
  • OnLobbyUpdate: Whenever any property of the lobby changes via CommitLobbyUpdateOperation, UpdatePlayerDataOperation and UpdateSlotPlayerDataOperation, this will be invoked.

On Lobby Types and Lobby Schema

There are two types of lobbies: Open and Closed lobbies. Open lobbies can be queried via RefreshLobbies and joined without the use of any passcode. Closed lobbies are not visible to RefreshLobbies and expect to be joined via the generated passcode.

Both lobby types have the same schema and are represented by the ULobby class. This class has several properties:

  • LobbyId: The unique identifier for the Lobby.
  • MatchType: Contains information about the UBeamGameTypeContent that is associated with the lobby.
  • Name and Description: Are arbitrarily defined when the lobby is created.
    • For matchmaking, these are empty.
  • Host: The host player's FBeamGamerTag.
    • For matchmaking result lobbies, there is no host. // Federation thing: Make a section here explaining LoL-style matchmaking where player properties change after the match is made but BEFORE the server is provisioned.
  • Restriction: Defines whether the lobby is Open or Closed.
    • Can be changed --- whenever it is changed to Closed, a new Passcode is generated.
  • Passcode: An auto-generated realm-scoped unique value that can be use to JoinLobbyByPasscode.
    • This is filled on-creation and the passcode length has a minimum of 6.
  • MaxPlayers: Defines the maximum amount of players that can be in this lobby at the same time.
    • When changing this via CommitLobbyUpdateOperation, if you have more players than the new MaxPlayer value, you'll get an error.
  • Players: A list of ULobbyPlayer containing data associated to each player in the lobby.
    • PlayerId: The player's FBeamGamerTag.
    • Joined: A ISO-8601 Date Time string for when the player.
    • Tags: An array of Key-Value pairs (allows duplicates).
  • Data: An arbitrary data store that can be filled and updated by the host of the lobby.
  • Created: A ISO-8601 Date Time string for when the Lobby was created.
